With our plug and play mains priority circuit, you have the option of integrating your power station (Ecoflow, Jackery, etc.) into your Grand California within just a few minutes.

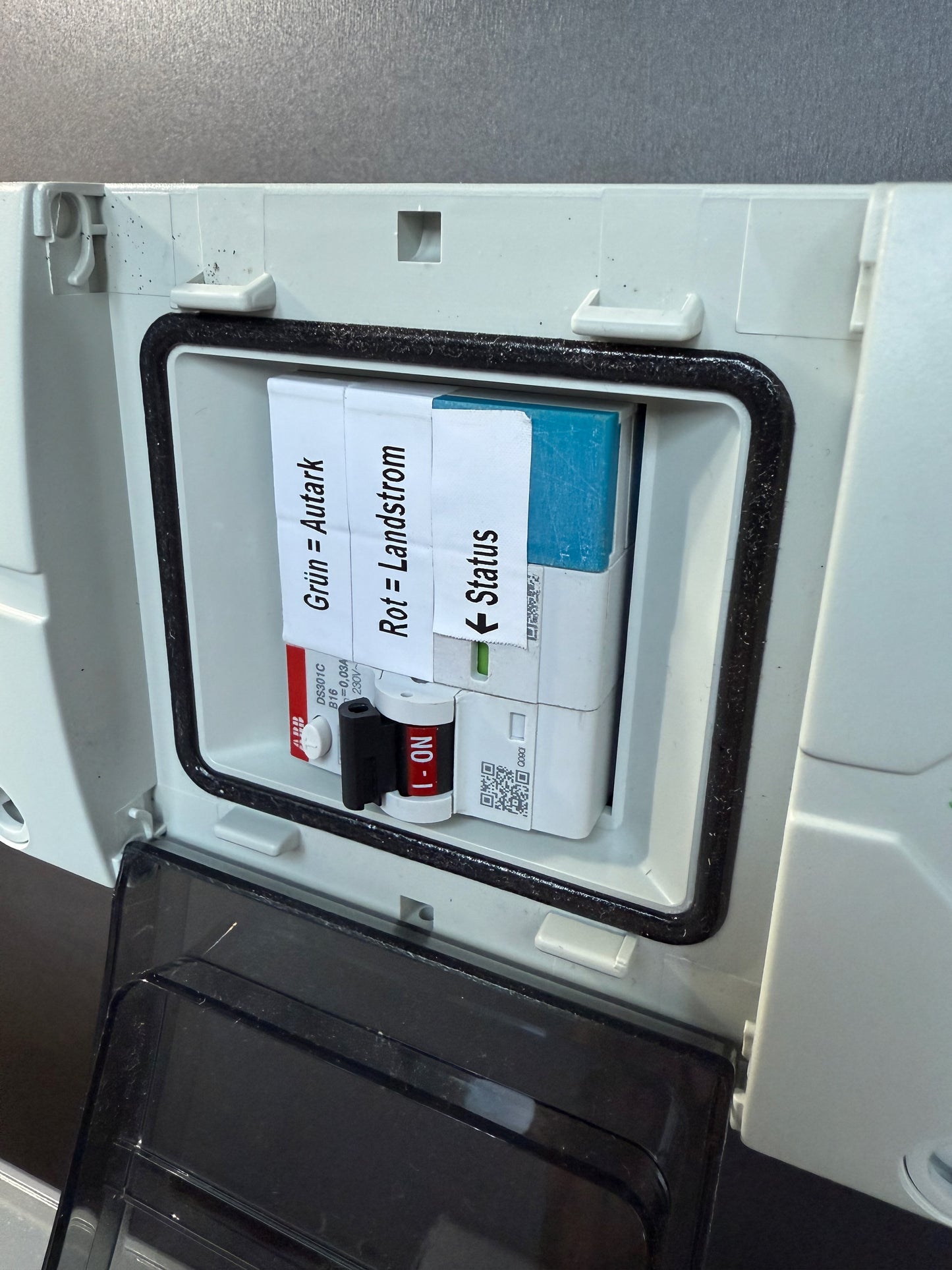

To do this, unplug a plug from your Grand California's original 230-volt fuse box and connect it to our plug-and-play module. In the next step, connect the power station to our module using the integrated IEC connector, and the power supply is ready.
The best part: If you connect your Cali to shore power, the power station will automatically charge, and the power supply will switch internally, allowing the sockets to function normally again via shore power. If the shore power connection is disconnected, the power station immediately takes over the 230-volt power supply. Thanks to our TN network circuitry, it's fully functional and safe with residual current protection.
General functionality
With our integration you have the following options after installation:
- Your 230-volt sockets in the Grand California can be used like shore power. Your power station provides the necessary power. Thanks to our TN network circuitry, it's fully functional and safe with residual current protection. Please always note the maximum output power of your power station. For an Ecoflow Delta 2, for example, this is 1800 watts.
-
Your power station will charge automatically as soon as you connect your vehicle to a shore power connection.
-
If your vehicle is connected to shore power, your power station will be charged via the mains priority circuit as described above. At the same time, your vehicle is supplied directly via shore power, which also charges the auxiliary battery.
Please note the following point:
- Our module comes with a standard IEC plug for connecting to the power station. Depending on the model, a different plug may be required. This is the case with Jackery devices, for example. In this case, the power station's original power supply must be connected.
-
The connection in the fuse box is intended for use with 230-volt sockets and is not intended for charging the body battery via the power station. If the module is connected to the input of the original 230-volt distribution, this line, and therefore also the line to the appliance plug, is not protected. This poses a risk to life!
-
We assume no liability for damage caused by incorrect or improper connection.
-
The delivery time after ordering is approximately 4 weeks.
Technical data:
- Weight: 2000g
- Input voltage 230V
- Maximum power 16A
- Housing protection class IP65
- Connection cable 2x Wago WINSTA® MIDI plug, 1x Schuko plug, 1x IEC socket
- VDE 0100-721 compliant
